Building a Natural Language Interface for Home Assistant Using Semantic Kernel and Azure OpenAI

In this project, I developed a Python application that leverages Microsoft’s Semantic Kernel and Azure OpenAI to enable natural language interactions with Home Assistant. By integrating the Model Context Protocol (MCP), this solution allows users to control and query their smart home devices seamlessly.

The complete source code and detailed documentation are available in my GitHub repository: semantic-kernel-examples.

Overview of Semantic Kernel

Semantic Kernel is an open-source SDK developed by Microsoft that facilitates the integration of Large Language Models (LLMs) like Azure OpenAI into applications. It provides a framework to define plugins and functions that LLMs can invoke, enabling complex workflows and interactions through natural language prompts.

Key features include:

  • Plugin Architecture: Encapsulate functionalities that can be invoked by LLMs.
  • Function Calling: Allow LLMs to execute predefined functions based on user prompts.
  • Memory Management: Maintain context over interactions for coherent conversations.
  • Planner: Orchestrate multi-step tasks by decomposing user intents into actionable steps.

For more information, refer to the Semantic Kernel documentation

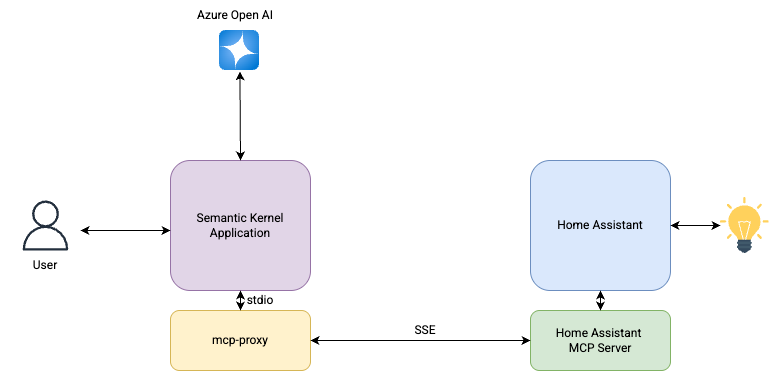

Architecture Diagram for the Project

Architecture Diagram

The architecture diagram above illustrates the integration between Semantic Kernel and Home Assistant using the Model Context Protocol (MCP). Home Assistant exposes its MCP Server using Server-Sent Events (SSE) protocol, while Semantic Kernel’s MCP implementation supports Standard I/O (stdio). To bridge this gap, an MCP proxy is used to translate between these protocols. This proxy enables seamless communication between Semantic Kernel’s natural language processing capabilities and Home Assistant’s device control functionality, without requiring modifications to either platform.

How It Works

The agent uses:

  • Semantic Kernel: To build a smart agent with plugin/function calling capabilities
  • Azure OpenAI: For natural language understanding and generation
  • MCP Plugin: To integrate with Home Assistant API
  • Bidirectional Communication: For real-time interactions with your smart home

When a user inputs a command like “Turn on the office light”, the Semantic Kernel application begins processing the request. The natural language input is sent to Semantic Kernel, which uses Azure OpenAI to interpret the intent and understand the user’s request. If the intent is a home device control or status check, the Semantic Kernel utilizes a custom plugin called MCPStdioPlugin. This plugin serves as a bridge to Home Assistant by invoking a background process (mcp-proxy) that communicates over the SSE (Server-Sent Events) protocol. Based on the interpreted intent, the plugin selects the appropriate function, constructs a structured message and passes it to Home Assistant via the proxy. Home Assistant receives the message, carries out the corresponding action—like turning on the light—and returns a response. The Semantic Kernel application then displays a confirmation message back to the user, completing a seamless natural language interaction with the smart home.

Setup Requirements

You can setup this if you have home assistant at home. You will need the following:

  1. An Azure OpenAI resource
  2. Home Assistant server running the MCP integration (MCP Server can be installed as an add-on)
  3. Python environment to run the Semantic Kernal Python Application.

Home Assistant Configuration

To properly set up the integration with your Home Assistant instance:

  1. Enable MCP Server Integration:

  2. Select Devices for Assistants:

    • In your Home Assistant UI, navigate to Settings → Assistants
    • Select the devices you want to expose to the MCP Server integration
    • Only selected devices will be accessible through the Semantic Kernel agent
  3. Generate Long-Lived Access Token:

    • In your Home Assistant UI, go to your profile (click on your username in the bottom left)
    • Scroll down to “Long-Lived Access Tokens” section
    • Click “Create Token”, provide a name (e.g., “Semantic Kernel Agent”)
    • Copy the generated token immediately (it will only be shown once)
    • Add this token to your .env file as HA_API_ACCESS_TOKEN=your_token_here

    Example .env file:

    1
    2
    3
    4
    5
    6
    7
    AZURE_OPENAI_DEPLOYMENT_NAME=gpt-35-turbo
    AZURE_OPENAI_ENDPOINT=https://<open api instance>.openai.azure.com/
    AZURE_OPENAI_API_KEY=<Open API Key>
    AZURE_OPENAI_CHAT_DEPLOYMENT_NAME=gpt-35-turbo
    OPENAI_CHAT_MODEL_ID=gpt-35-turbo

    HA_API_ACCESS_TOKEN=<Home Assistant Long Lived Token>
  4. Network Configuration:

    • Ensure your Semantic Kernel agent can reach the Home Assistant MCP endpoint
    • Update the SSE_URL in the se_agent_homeassistant.py file to match your Home Assistant instance URL
    • Set the proper HA_API_ACCESS_TOKEN in your environment variables or .env file
  5. Test Connectivity:

    • Before running the agent, verify that your Home Assistant instance is accessible from the environment where you’re running the agent

Running the Agent

To run the agent, use the following command:

1
python se_agent_homeassistant.py

Then start interacting with your Home Assistant through natural language!

Example Interactions

Here are some examples of how you can interact with your smart home through this agent:

Querying Device Status:

1
2
User > What's the status of the office light?
Assistant > The status of the office light is currently 'on' with a brightness level of 255
1
2
User > What's the temperature in the living room?
Assistant > The temperature in the living room is 28.5°C.

Controlling Devices:

1
2
User > Turn off the that light please
Assistant > The office light has been turned off.

Complex Queries:

1
2
3
4
5
6
User > Which lights are currently on in the house?
Assistant > The following lights are currently on in the house:
1. Living Light with a brightness level of 255
2. Master Pendant Light with a brightness level of 98
3. Living Mood Lights with a brightness level of 172
4. Kitchen Strip with a brightness level of 133
